Brooklyn Black WC Unit incl. Cistern Frame, Flush Plate + Wall Hung Pan

The Brooklyn modular furniture range is perfect for adding modern style to any bathroom.

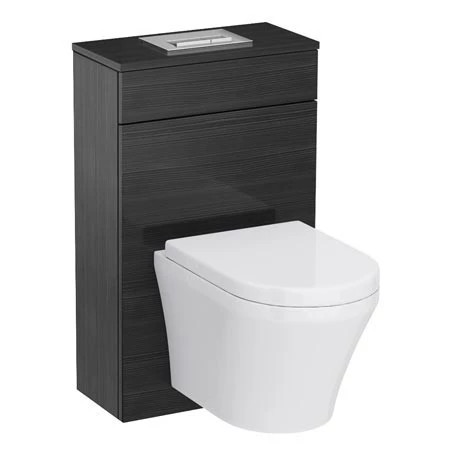

This high quality Black textured wood effect WC unit is perfect for adding modern style to any bathroom, features a compact toilet fixing frame and wall hung toilet.

The fixing frame has a small, compact design making it perfect for under windows or inside low-wall installations. Comes with with a striking modern dual flush plate which is mounted on the top of the cistern, giving added flexibility.

The modern round wall hung toilet is made from high quality vitreous china. It’s wall hung design makes your bathroom look much bigger, tidy and it is easier to clean.

WC Unit Details

• Height: 853mm
• Depth: 260mm
• Width: 502mm
• Colour: Black Woodgrain
• Material: MFC Textured Woodgrain
• Modern design
• Realistic wood effect texture
• Fully Assembled (not flat packed)

Concealed Cistern Fixing Frame Details

• Height: 755-1055mm (Approx.)
• Width: 415mm
• Depth: 166mm
• Frame Height Adjustment: 0-300mm
• Full Flush: 6-7.5L, Half flush: 2.5-4L
• Fill valve pressure: 0.2-16bar
• Metal Frame Support weight: 400KG
• Compatible with all wall-hung WC pans
• Built-in or plasterboard wall installation

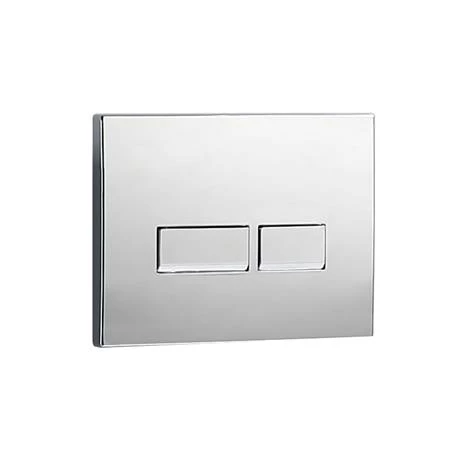

• Flush Plate Size: 242 x 160mm
• Flush Plate Colour: Polished Chrome
• Button Shape: Square
• Style: Modern
• Top or front flush installation
• Water saving dual-flush valve
• Insulated against condensation and reduces noise from water tank
• Durable moulded tank
• Easy access for maintenance
• Minimalist compact slimline design
• Suitable for bathroom furniture and concealed framework
• This fixing frame has a small, compact design making it perfect for under windows or inside low-wall installations.
• Includes brackets and WC bend

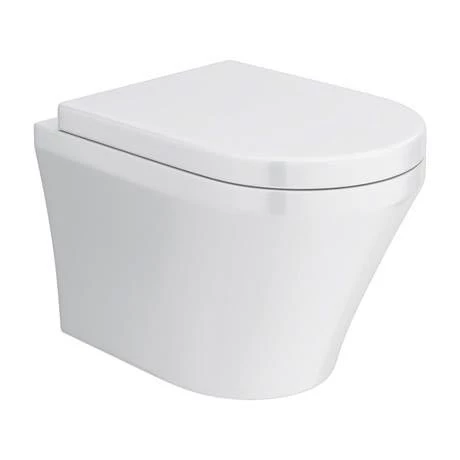

Wall Hung Pan Details

• Projection: 530mm
• Width: 355mm
• Height: 400mm
• Colour/Finish: Gloss White
• Material: Ceramic
• Supplied with a D-Shape Soft Close Top-Fixing Seat
• Guarantee: 5 Year

All measurements are approximate

Comprises

(1) Brooklyn WC Unit (502 x 260mm)
(1) Compact Toilet Fixing Frame with Dual Flush Cistern
(1) Chrome Flushing Plate
(1) Round Wall Hung Pan Inc. Fixings
(1) D-Shape Soft Close Top-Fix Seat
